Oak Creek, WI

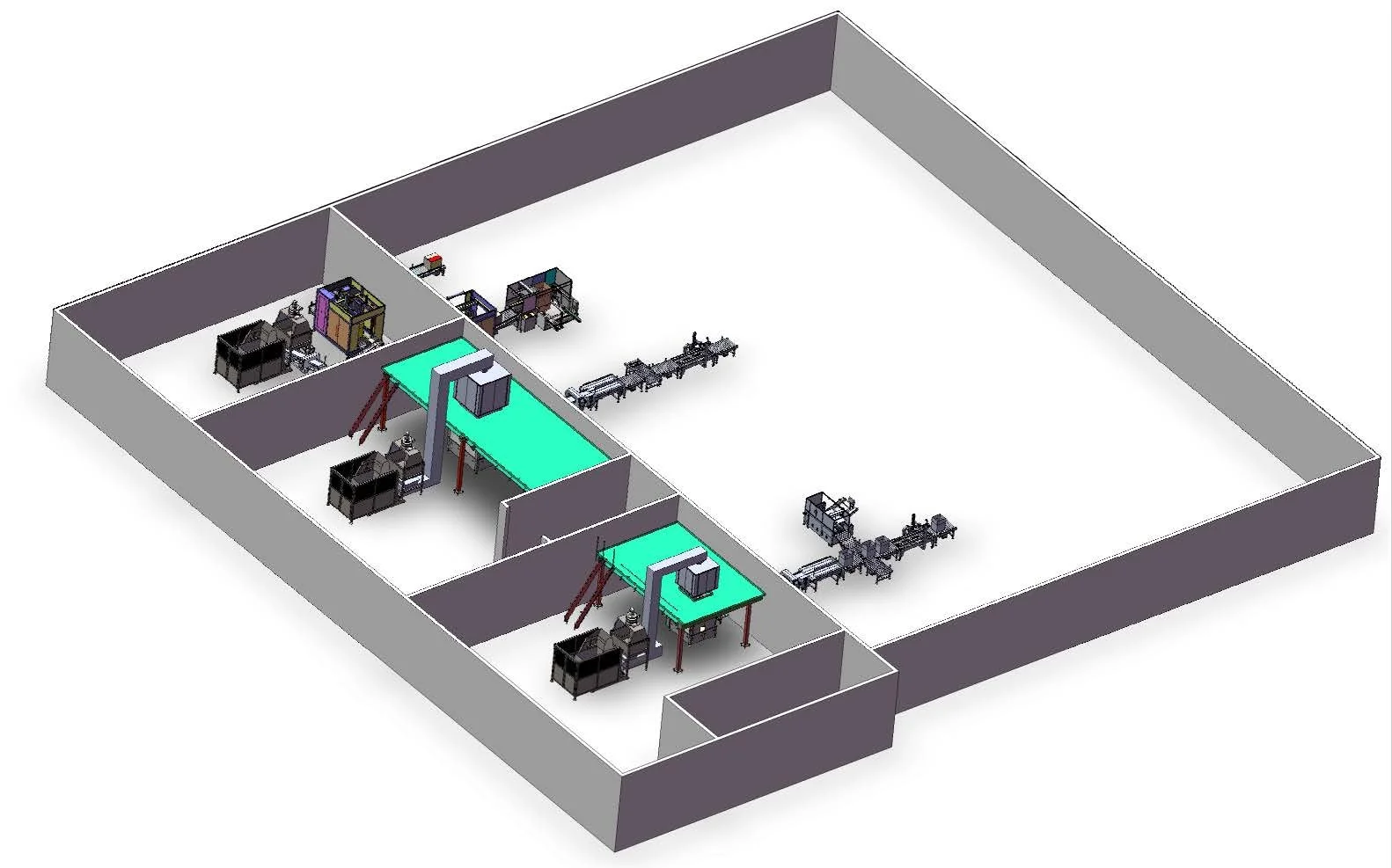

Three packaging lines are under construction in Oak Creek, WI.

This is a complete large-bucket material cartoning process

—

from carton forming and bag inserting, to filling, bag sealing and pressing, and finally carton sealing — achieving a fully automated and continuous packaging workflow.

This another production line in Oak Creek, WI.

This process begins with bulk materials being discharged into the Z-type bucket elevator, which transfers the product to the second-floor platform where the multihead weigher performs accurate weighing and dosing. The measured product is then released into the packaging machine for bag forming, filling, and sealing.

After packaging, the finished bags are conveyed to the packing area for cartooning. An automatic case erector continuously supplies formed cartons to the operators for efficient case loading. Once filled, the cartons are transferred onto the conveyor for automatic case sealing, completing the streamlined and automated packaging workflow.

There are three Tray Washer in Oak Creek, WI.

This is the most popular machine for the food industry. And this is how our machine works in real operation process and that efficiency.

SSP Sterilization Chamber

The SSP Sterilization Chamber is an automated high-efficiency sterilization system designed for bulk materials, semi-finished products, or packaged goods. By utilizing controlled cycles of superheated steam, high-temperature air, or other validated sterilization media, the SSP chamber ensures rapid and uniform microbial inactivation while preserving product quality and integrity.

- High Sterilization Efficiency – Achieves validated microbial reduction levels suitable for food, nutraceuticals, and pharmaceutical pre-processing.
- Uniform Temperature Distribution – Multi-zone heating and circulating airflow ensure consistent sterilization across all trays and material layers.
- Fully Automated Operation – Automatic door control, cycle programming, data logging, and safety interlocks.
- Hygienic Stainless-Steel Construction – 304/316L stainless steel frame for GMP-compliant environments.
- Flexible Loading System – Compatible with tray carts, containers, or bulk loading mechanisms.
- Energy-Efficient Design – Optimized heat recovery and insulation reduce operating costs.
- Real-Time Monitoring – PLC + HMI system with temperature, pressure, and humidity tracking.
- Temperature Range: 75°C – 150°C (or customized based on process)
- Sterilization Cycle: 20–90 min depending on product type
- Capacity: 500–3000 kg per batch (customizable)
- Control Accuracy: ±0.5°C temperature / ±1% humidity
- Microbial Reduction: Up to 5–7 log depending on validation requirements
- Chamber Size: Configurable for single-door or pass-through (double-door) layouts
- Pet food ingredients
- Freeze-dried material pre-treatment
- Meat and seafood pasteurization
- Grain, powders, and dehydrated vegetable sterilization
- Pharmaceutical pre-sterilization processes
- Nutraceuticals and botanical extracts
- Packaging material sterilization (if required)
- Enhanced Product Safety – Eliminates pathogens such as Salmonella, E. coli, Listeria, molds, and spores.
- Improved Production Efficiency – Integrates seamlessly with upstream and downstream automated lines.
- Quality Retention – Maintains flavor, color, and nutrient profile better than traditional high-temperature sterilization.
- Regulatory Compliance – Supports FDA, CFIA, EU, and GMP validation standards.
- Reduced Labor – Automated loading/unloading options reduce manual handling and improve consistency.
- Scalable Design – Suitable for factories from small batch production to large-scale industrial processing.
